A Using Manual Of Uwell Caliburn

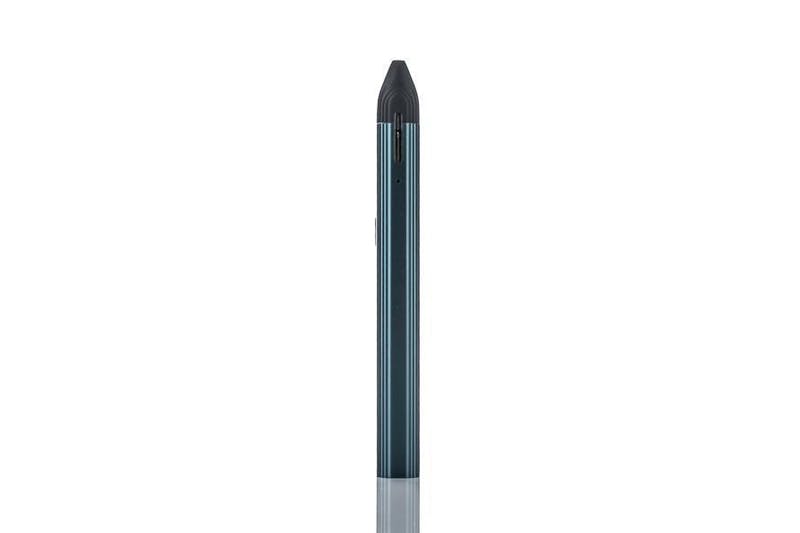

The Uwell Caliburn pod system is simple to use, fill, and charge, and very small, light, and compact. If you’ve learned so much about the device and you bought one, you may find that you don’t know how to use it. Here is a manual guide of the Uwell Caliburn or the Uwell Caliburn compatible starter kit.


UWELL Caliburn AK2 Review: Back To OG KOKO?

Caliburn A2 Review: Best Vape For 2022?

A Few Tips Every Uwell Caliburn Owner Should Know

Uwell Caliburn G Pod Kit Review – Caliburn vs Caliburn G


  • Capacity: 2 ml
  • Battery Capacity: 520 mAh
  • Size: 110 mg×21.2 mg×11.6 mg
  • Weight: 30 g
  • Maximum Wattage: 11W
  • Directly vape or button vape
  • Click 5 times to lock/unlock, a child safety feature
  • Draw-activated mechanism fault diagnosis function
  • Top-fill cartridges, easy to use
  • Compact and portable

Detailed Instruction


Click the fire button 5 times in 2 seconds to turn on/off the device, the LED will flash green 3 times.


When the device is on, take a draw or press the fire button to vape, the LED will stay

The device will automatically stop firing when the fire button is held or for longer than 10 seconds then the LED will flash green 5 times.


The colour of the LED during vaping can indicate the remaining capacity of the battery:

When the capacity is over 60%, the colour of the LED is green;

when it’s within 30-60%, the colour of the LED is blue;

when it’s below 30%, the colour of the LED is red.

When the LED flashes red 10 times, it indicates a low battery and stops output.


When charging the device with MicRo USB cable, the indicator light flashes slowly to

indicate that the product is charging. It will flash red to indicate low battery, flash blue

to indicate medium power, flash green to indicate sufficient power, and the green

light stays on after charging is completed.


  1. Pull off the pod cartridge
  2. Remove the drip tip
  3. Add the juice.
  4. Put the drip tip back on
  5. Install the pod back on the body
A Using Manual Of Uwell Caliburn | VapePenZone Australia Vape Shop
A Using Manual Of Uwell Caliburn | VapePenZone Australia Vape Shop


  1. Do not leave the drip tip off for a long time, install drip tip back securely after refilling to prevent leaking.
  2. Don’t put juice in the centre hole.
  3. When using a new pod and then filling the pod, please let the pod sit for 10 minutes to avoid coil burning.
  4. When filling only use a bottle that has a nozzle that can fit inside the opening of the tank which is 3.5millimeters wide.


Pull off the used pod cartridge and install a new one.

Protection features

Draw-activated mechanism fault diagnosis function

If the draw-activated mechanism fails, the program will automatically stop the draw-

activated working mode and the manual button can work normally.

Short-circuit protection

When a short-circuit occurs, press the fire button the LED will flash red 3 times to

indicate short-circuit and stop output.

Low power alert

When the device is in low battery, the LED will flash red 10 times to indicate low

battery and stop output.

Vaping overtime alert

The device will automatically stop when the button is held for longer than 10 seconds

then the LED will flash green 5 times.

A Using Manual Of Uwell Caliburn | VapePenZone Australia Vape Shop
A Using Manual Of Uwell Caliburn | VapePenZone Australia Vape Shop


How to fill Uwell Caliburn?

To fill your Uwell Caliburn, simply remove the plastic mouthpiece at the top of the device which will allow you to access the to fill holes. Simply insert the tip of a bottle of e-liquid into one of them to fill holes and gently squeeze. Be sure not to use the center hole, as this is the airflow hole. Once the E-liquid pod is full, simply snap Back on to the pod you are ready to go.

How to charge Uwell Caliburn?

To charge your Uwell Caliburn, simply attach the micro USB cable to the bottom micro USB port and serve the other USB side into a compatible USB charger.

How to prime a new Uwell Caliburn pod?

When you install a new Uwell Caliburn pod into your device, you need to prime it before using it. To do this, simply fill the pod with e-liquid, and then wait approximately 10 minutes. This will allow the coil heads and cotton wick to saturate with e-liquid and will ensure that you get great flavour from your new pod.

How to turn the unit on and off?

Because the UL has an auto-fire feature, it is a good idea to turn your device off when not in use. Just click the fire button five times and your device will be turned off. To turn the device back on, simply click the fire button five times again. Your device will indicate it has gone off with a flashing LED light.

I am pushing the button and my device is not firing.

This is likely because your batteries either dead or the devices locked. To verify if your battery is dead, simply plug your device into a USB port and wait approximately one hour for the battery to charge. If your device is locked, simply click the button five times quickly and the light will flash to indicate it is on.

My device is leaking:

Because of the top filled design of the pod system, it is very unlikely for your pod to ever leak.

There are a few reasons that your pod may leak. If you overfilled your pod, illiquid may leak down the front or back sides of the plastic on the pod. Please ensure that you do not overfill your pod. If you have dropped your device, it is also possible that the pod has been cracked.

Due to the inexpensive nature of pods, it is recommended to replace your pod as the first step to fix a leaking vaping.

 Your device may also leak if it is left in extraordinarily high temperatures, under direct sunlight, or in sub-zero temperatures. For best results, keep your device at room temperature whenever possible.

I still have Questions:

If you have any further questions or concerns, feel free to contact us directly at Vapepenzone.

New to Caliburn? Apply the code special for you! Click HERE to get the code

See you next time.
